Unica Max 200 kW - 300 kW

Products / Unica universal boilers

Unica Max (Moderator boiler series) is a low-temperature water boiler of steel construction for burning solid fuel. In standard version it is equipped with a blower and an electronic controller that operates circulating pumps. The Unica Max can work with a SMOK Biomass Burning Automatic Set. Connection is available by entrance on the right or left  side of the boiler. The Unica Max is used as a heat source for agriculture industry facilities, timber kilns and other industrial facilities.

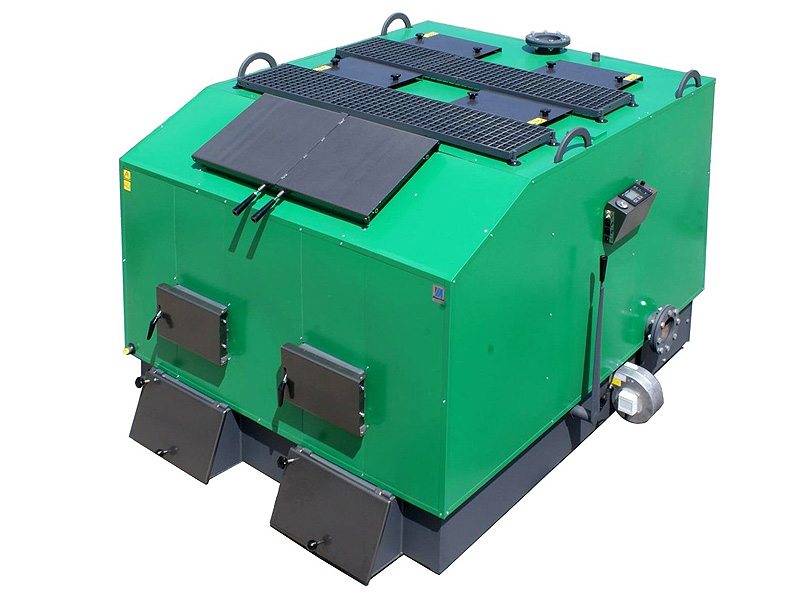

unica_max300
coalwoodwoodchipscoal and fines
  • Equipment
    a controller, a blower, a thermometer, a cleaning set
  • Warranty
    36 months
  • Unica MAX (kW) 200 250 300
     Efficiency 80%
     Water volume (l) 900 1500 1700
     Weight (kg) 1400 2000 2400
     Charging chamber volume (dm3) 645 968 1090
     Water working temperature (oC) 70-80
     Min. return  water temperature (oC) 55
     Max. working pressure (bar) max. 1,5
     Power supply (V) 230
     Dimensions of the charging opening (cmxcm) 44×89 42×119
     Chimney height (m) 8-10
     Min. chimney section (cm2/ø mm) 1600/450
    unica_max300_wymiary

    Unica Max 200-300 boiler dimensions

    Unica Max (kW) 200 250 300
     Dimensions (mm) A 2600 2600 2600
    B 1410 1890 2090
    C 1650 1650 1650
    D 1250 1700 1900
    E 350 350 350
     Flue dimensions (mmxmm) F 400×400 400×400 400×400
     Stub return height (mm) G 450 450 450
    unica_max300_przekroj

    Unica Max 200-300 boiler in section
