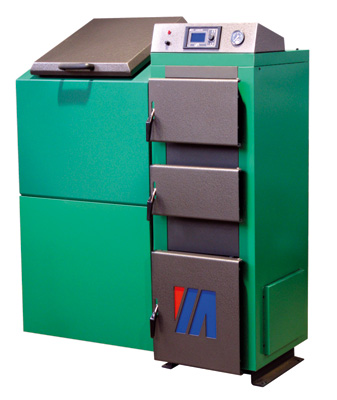

Unica Vento Eko 15 kW - 25 kW

Products / Automatic boilers

Unika Vento Eko is a proposal for clients expecting comfort in use and looking for high quality boilers. A heat exchanger of high efficiency, with upgraded retort feeder allows for burning pea coal assortment, pellets or even fine coal in an emergency situation. The boiler can also work in a manual mode. As a result of many years of experience a cast iron grate ( no water grate) is used in the boiler.

Unica_Vento_Eko
coalwoodbriquettepelletseco-pea coal
  • Equipment
    - boiler cleaning set
    - cast iron grate
    - ash drawer
  • Warranty
    36 months for sealing of the heat exchanger
    24 months for other elements
  •  Unica Vento Eko (kW) 15 20 25
     Efficiency 84,6 %
     Water volume (l) 67 80 95
     Weight (kg) 373 433 498
     Charging chamber volume (m3) 0,31 0,31 0,31
     Water working temperature (oC) 70-80
     Min. return  water temperature (oC) 55
     Max. working pressure (bar) max. 1,5
     Power supply (V) 230
     Log size (cm) 31
     Chimney height (m) 8-10
     Min. chimney section (cm2/ Ø mm) 400/180
    wymiary_Unica_Vento_Eko

    UnicaVento Eko boiler dimensions

    Unica Vento (kW) 15 20 25
     Dimensions (mm) A 820 940 1060
    B 1394 1394 1394
    C 1495 1495 1495
    D 510 510 510
    E 1120 1120 1120
    Flue dimensions (Ø) F 160 160 180
    G 125 125 125
    przekroj_Unica_Vento_Eko

    Unica Vento Eko boiler in section
