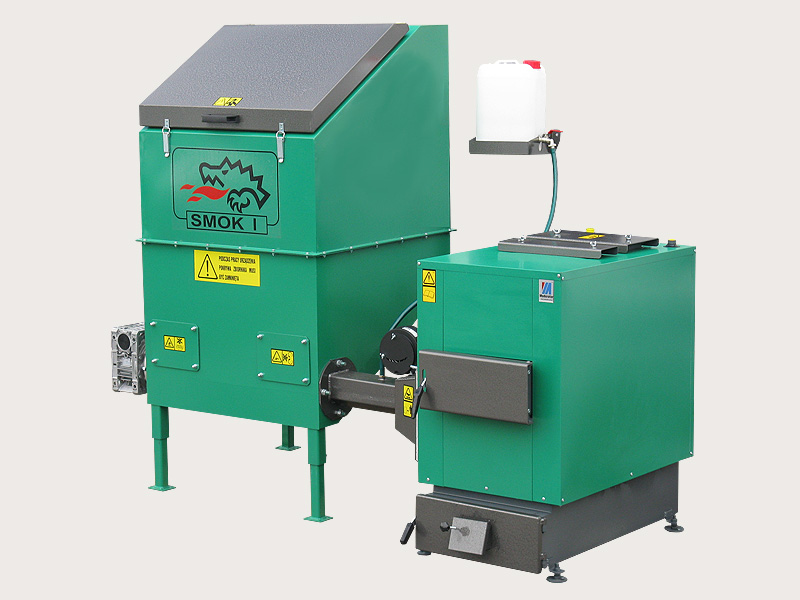

AZSB is a modern device consisting of a heat exchanger, a feeding set, a burner and a fuel hopper. The unique construction of the exchanger and a fuel automatic feeder makes an operation of AZSB unmanned, guarantees a high level of efficiency and low flue gas emission that conforms with EN 303-5 standard. Wide range of fuel hoppers (0,6;1;2; 6;8;10 m3 ) allows the hopper to be filled in every 2-6 days, depending on fuel type and its caloric value. Fuel of 25% moisture content (briquette,tree bark,peat,shavings,woodchips,pellet,turf mole) can be well burnt in AZSB as well as 40% moisture content woodchips,tree bark,peat,turf mole). It is possible due to the use of two types of a burner: ceramic and cast iron. When burning fuel up to 40% moisture content a ceramic burner is used (30, 50, 100, 240kW), when burning dry fuel (to max. 25% moisture content) a cast iron burner is used (30, 60, 120, 240kW).
UDT attestation, certificate of „ecology safety sign” issued by IChPW, Zabrze, Poland
a controller, a blower, a thermometer, a cleaning set, a fuel bin, an ash box
a fuel bin can be connected to the AZSB on the right, left side or i the front of the exchanger
|AZSB- GZ (kW)||30|
|Water volume (l)||90|
|Fuel tank capacity (m3)||0,6|
|Water working temperature (oC)||70-80|
|Min. return water temperature (oC)||55|
|Max. working pressure (bar)||max. 1,5|
|Power supply||3˜ 400V|
|Flue dimensions (cmxcm)||15-15|
|Chimney height (m)||8-10|
|Min. chimney section (cm2/ø mm)||400/180|
When three-phased power is not available the APSB can run on a frequency converter.
