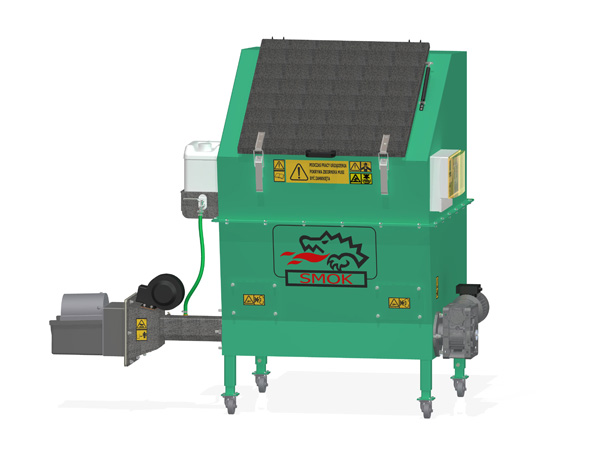

APSB-GZ Cast Iron Haed – Biomass Burning Automatic Feeder 40 / 60 / 120 kW

Products / APSB-GZ Cast Iron – Biomass Automatic Feeder

APSB is a modern device designed for biomass burning in form of wooden shaving, woodchip,tree bark, briquette,turf mole,peat,cherry drupels and pellets. Moisture content in fuel determines a choice of a burner (ceramic or cast iron). Maximum content is 40%. APSB can be coupled with Moderator type boiler or any other type, which construction allows for it.  The burning process is controlled automatically. Application of  APSB is wide: from residential building, schools to industrial facilities. It was rewarded with the gold medal on Eco Woods Fair in 2001

APSB30_GZ_2
  • Equipment
    a controller, anti-fire set
  • Warranty
    24 months
  •

     APSB 40-GZ
    Fuel tank
    1m3 2m3 4m3 6m3 8m3 10m3
     Nominal thermal power (kW) 40 40 40 40 40 40
     Fuel tank capacity (m3) 1 2 4 6 8 10
     Power requirement (kW) 0,84 1,19 2,69 2,69 2,69 2,69
     Power supply (V) 3˜400 3˜400 3˜400 3˜400 3˜400 3˜400
     Weight (kg) 354 532 950 1150 1300 1441
     Dimensions (pdf) preview preview preview preview preview preview



     APSB 60-GZ
    Fuel tank
    1m3 2m3 4m3 6m3 8m3 10m3
     Nominal thermal power (kW) 60 60 60 60 60 60
     Fuel tank capacity (m3) 1 2 4 6 8 10
     Power requirement (kW) 0,84 1,19 2,69 2,69 2,69 2,69
     Power supply (V) 3˜400 3˜400 3˜400 3˜400 3˜400 3˜400
     Weight (kg) 360 540 952 1155 1300 1445
     Dimensions (pdf) preview preview preview preview preview preview



     APSB 120-GZ
    Fuel tank
    1m3 2m3 4m3 6m3 8m3 10m3
     Nominal thermal power (kW) 120 120 120 120 120 120
     Fuel tank capacity (m3) 1 2 4 6 8 10
     Power requirement (kW) 0,84 1,19 2,69 2,69 2,69 2,69
     Power supply (V) 3˜400 3˜400 3˜400 3˜400 3˜400 3˜400
     Weight (kg) 374 551 970 1170 1320 1462
     Dimensions (pdf) preview preview preview preview preview preview
