APSB-GC Ceramic Head – Biomass Burning Automatic Feeder 50 kW / 100 kW

Products / APSB-GC Ceramic Head – Biomass Automatic Feeder

APSB is a modern device designed for biomass burning in form of wooden shaving, woodchip,tree bark, briquette,turf mole,peat,cherry drupels and pellets. Moisture content in fuel determines a choice of a burner (ceramic or cast iron). Maximum content is 40%. APSB can be coupled with Moderator type boiler or any other type, which construction allows for it.  The burning process is controlled automatically. Application of  APSB is wide: from residential building, schools to industrial facilities. It was rewarded with the gold medal on Eco Woods Fair in 2001

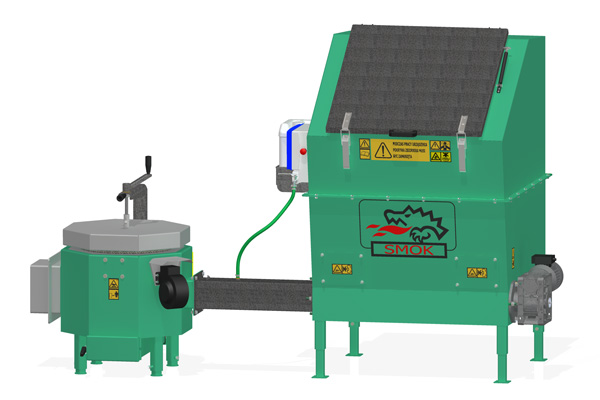

112apsb50_100_gc_1m3
woodchips
  • Equipment
    a controller, anti-fire set, a blower
  • Warranty
    24 months
  •  APSB 50-GC
    Fuel tank
    1m3 2m3 4m3 6m3 8m3 10m3
     Nominal thermal power (kW) 50 50 50 50 50 50
     Fuel tank capacity (m3) 1 2 4 6 8 10
     Power requirement (kW) 0,84 1,19 2,69 2,69 2,69 2,69
     Power supply (V) 3˜400 3˜400 3˜400 3˜400 3˜400 3˜400
     Weight (kg) 563 743 1155 1376 1514
     Dimensions (pdf) preview preview preview preview preview preview
